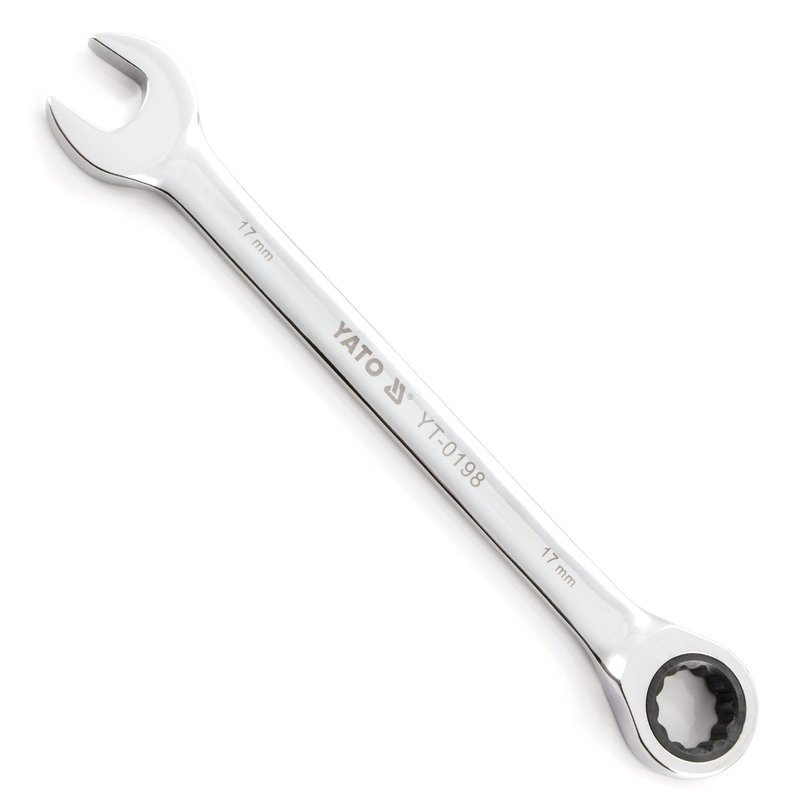

Ratschen Ring Maul Schlüssel 6 - 32 mm YT-01906-0206
Artikeldetails
Ratschenmaulschlüssel Einzeln verchromt 6 mm - 32 mm
YT-01906 - YT-0206
Robuster Ratschenmaulschlüssel aus Chrom Vanadium Stahl. Dieser Schraubenschlüssel zeichnet sich durch seine hochwertige Verarbeitung, den gut ablesbaren Beschriftungen und seiner polierten Oberfläche aus.
Merkmale
- Aus stabilem Chrom-Vanadium-Stahl poliert
- Ratsche mit 72 Zähnen für die optimale Kraftübertragung
- Durch die Ratschenfunktion können Sie Schrauben perfekt anziehen ohne den Ratschenringmaulschlüssel abzusetzen
- In den Größen von 6 mm - 32 mm bestellbar
Versandgewicht:
0,10 Kg
- Ratschen-Maulschlüssel nach Auswahl
YT-01906 / 6 mm
(L = 120 mm / B = 14,7 mm / D = 18,0 mm / S1 = 4,0 mm / S2 = 6,5 mm / 50 g)
YT-01907 / 7 mm
(L = 130 mm / B = 16,2 mm / D = 18,0 mm / S1 = 4,3 mm / S2 = 7,0 mm / 55 g)
YT-01908 / 8 mm
(L = 141 mm / B = 17,6 mm / D = 18,2 mm / S1 = 4,8 mm / S2 = 7,2 mm / 60 g)
YT-01909 / 9 mm
(L = 151 mm / B = 19,4 mm / D = 20,4 mm / S1 = 4,8 mm / S2 = 7,4 mm / 75 g)
YT-0191 / 10 mm
(L = 160 mm / B = 22,1 mm / D = 22,2 mm / S1 = 6,0 mm / S2 = 7,8 mm / 80 g)
YT-0192 / 11 mm
(L = 165 mm / B = 24,7 mm / D = 24,2 mm / S1 = 6,6 mm / S2 = 8,5 mm / 95 g)
YT-0193 / 12 mm
(L = 170 mm / B = 26,4 mm / D = 25,5 mm / S1 = 6,7 mm / S2 = 8,9 mm / 105 g)
YT-0194 / 13 mm
(L = 180 mm / B = 27,5 mm / D = 26,7 mm / S1 = 6,6 mm / S2 = 9,2 mm / 140 g)
YT-0195 / 14 mm
(L = 190 mm / B = 30,8 mm / D = 29,0 mm / S1 = 7,4 mm / S2 = 9,4 mm / 150 g)
YT-0196 / 15 mm
(L = 200 mm / B = 32,9 mm / D = 30,8 mm / S1 = 7,7 mm / S2 = 10,1 mm / 175 g)
YT-0197 / 16 mm
(L = 210 mm / B = 34,3 mm / D = 31,5 mm / S1 = 7,8 mm / S2 = 10,3 mm / 195 g)
YT-0198 / 17 mm
(L = 225 mm / B = 36,8 mm / D = 33,6 mm / S1 = 8,4 mm / S2 = 10,6 mm / 225 g)
YT-0199 / 18 mm
(L = 235 mm / B = 39,2 mm / D = 35,6 mm / S1 = 9,1 mm / S2 = 10,8 mm / 255 g)
YT-0200 / 19 mm
(L = 245 mm / B = 40,1 mm / D = 37,3 mm / S1 = 9,5 mm / S2 = 11,3 mm / 280 g)
YT-0189 / 21 mm
(L = 290 mm / B = 45,2 mm / D = 43,0 mm / S1 = 9,9 mm / S2 = 13,3 mm / 458 g)
YT-0201 / 22 mm
(L = 290 mm / B = 45,6 mm / D = 44,2 mm / S1 = 10,5 mm / S2 = 13,4 mm / 448 g)
YT-0202 / 24 mm
(L = 335 mm / B = 52,8 mm / D = 50,0 mm / S1 = 11,3 mm / S2 = 14,5 mm / 615 g)
YT-0203 / 25 mm
(L = 335 mm / B = 52,0 mm / D = 47,4 mm / S1 = 10,2 mm / S2 = 14,3 mm / 604 g)
YT-0204 / 27 mm
(L = 335 mm / B = 55,6 mm / D = 52,7 mm / S1 = 10,9 mm / S2 = 15,7 mm / 800 g)
YT-0205 / 30 mm
(L = 400 mm / B = 62,5 mm / D = 57,7 mm / S1 = 12,2 mm / S2 = 17,1 mm / 1,058 kg)
YT-0206 / 32 mm
(L = 420 mm / B = 65 mm / D = 61,7 mm / S1 = 13,2 mm / S2 = 17,9 mm / 1,028 kg)
